Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

Product Categories
Hefei Coolnet power Co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

  • 1
  • 2
  • 3

Brand Name : COOLNET

Model Number : MDC

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1PCS

Price : USD3000-10000/PCS

Payment Terms : L/C, T/T

Supply Ability : 200 SETS PER MONTH

Delivery Time : 20-35 working days

Packaging Details : Standard export package

Product name : Cabinet System

Refrigerant : R134a,R407C,R22(R407C/R410A),R410A

Application : network closets or telecom sites , Edge Computing

Voltage : 380v/220v,110-220v/50-60Hz,220V/50Hz

Operating voltage : 380/400 VAC,230 VAC,220V(380V)/50HZ,AC 220V

Cooling system : DC inverter rack mounted precision air conditioner

Contact Now

Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

Introduct Production

Coolnet Edge Micro Data Center is a plug and play, self-contained, and fully integrated solution to protect your critical IT assets with built in cabinet, power, cooling, monitoring, fire and security systems. It is an ideal for edge computing to reduce latency of data transferom, improve cyber-safety, and save network cost of business. As a result, Coolnet Micro Data Center is an one-stop data center which can also reduce the cost of maintenance and operation of enterprises. Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

Advantage

Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

Cooling System

  • Total cooling capacity: 3.5-10.5KW with accuracy ±0.5℃
  • Inverter compressor + double EC fan, PUE≤1.4
  • Low load anti-condensation technology
  • N+X redundant group control

Power Distribution System

  • Option capacity: 3-30KVA
  • Rack mounted UPS
  • Backup power time can be customized from 15 to 120 m.
  • ATS dual input switch (optional)
  • Industrial-grade devices, built-in C-level lightning protection
  • Comprehensive monitoring, real-time power display

Application

  • Edge Computing
  • As a computing node in remote and branch offices(Banks, Telecommunication companies, etc.)
  • As a floor distributor
  • In small business and enterprises

 Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

Technical Parameter

Model EC08 EC12 EC20 ERx
Power 3KVA 3-6KVA 6-30KVA

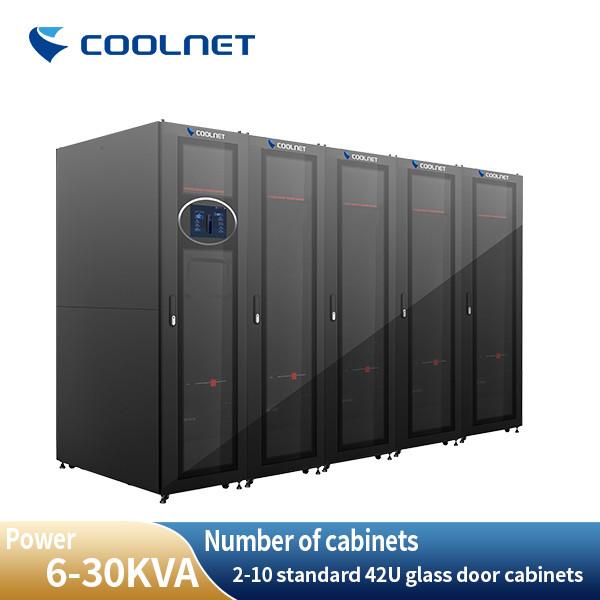

Number of cabinets 0.8m high cabinet, available space 8U 1.2m high cabinet, available space 16U Standard 42U cabinet, free space 30U 2-10 standard 42U glass door cabinets
Enclosed cabinet Glass door, IP5X, full cold and hot channel sealing
Power supply 220VAC, 3KVA UPS, power backup customized as required, Class C lightning protection 220VAC, 3-6KVA UPS, customized standby power, C-level lightning protection 220V/380VAC, 6-30KVA UPS, power backup customized as required, Class C lightning protection
Refrigeration Unique air duct design, without air conditioner and outdoor unit Refrigerating capacity 3.5-6.5KW optional, variable frequency EC fan; Quick coupling; Low load anti condensation; Refrigerating capacity 3.5-10.5KW optional, variable frequency EC fan; Quick coupling; Low load anti condensation;
Monitor 1U rack type monitoring host, monitoring temperature and humidity, door magnet, smoke sensor, electricity, etc., without display 1U rack type monitoring host/10 inch touch screen monitoring host (0U), temperature and humidity, door magnet, smoke sensor, electricity, refrigeration monitoring 10 inch touch screen monitoring host (0U), temperature and humidity, door magnet, smoke sensor, electricity, refrigeration monitoring

Factory Details

Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing

Delivery and Installation

Micro Data Center Solutions Cost-Effective Solution For The Edge Computerizing
